Digital Signage Player
IBASE has a full range of digital signage system products catering across vertical markets including retail, fast food, hospitality, education and financial. Depending on their requirements, customers can choose the models based on performance, number of displays (up to twelve/12 for video wall player), resolution and ventilation designs. IBASE digital signage players feature advanced remote management that easily refreshes content and increases uptime while lowering costs.
iSMART
Intelligent Energy-Saving Technology
An intelligent energy-saving technology providing automatic power on/off scheduling to protect systems and make them use power more efficiently
Observer
Remote Monitoring Technology
A hardware remote monitoring utility used for monitoring voltages, temperature sensors and fan speeds remotely
iCONTROL
Intelligent Control Technology
An intelligent control technology featuring auto power on/off scheduler, hardware EDID emulation and display status monitoring
Digital Signage Player

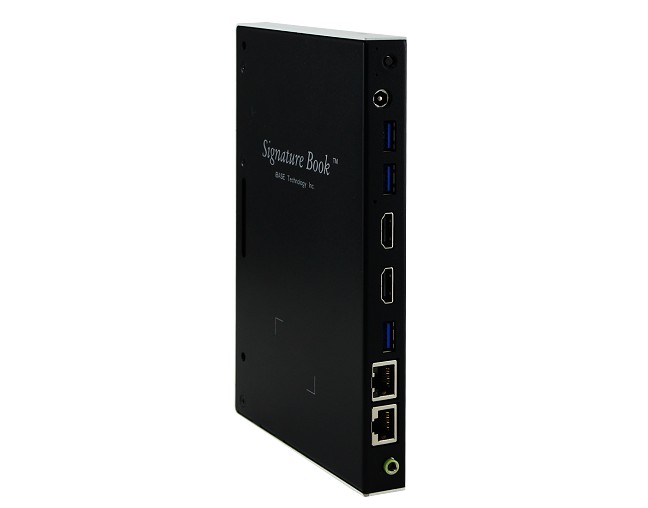

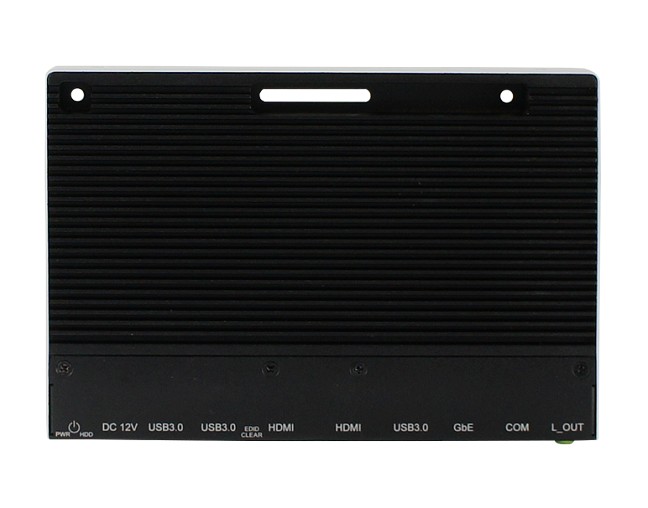

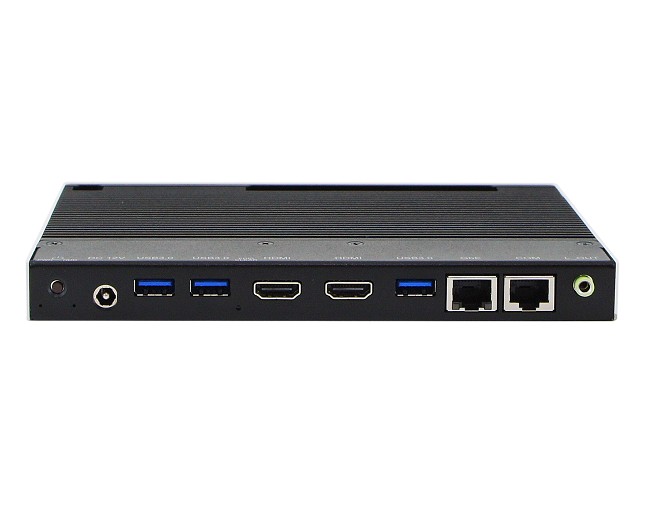

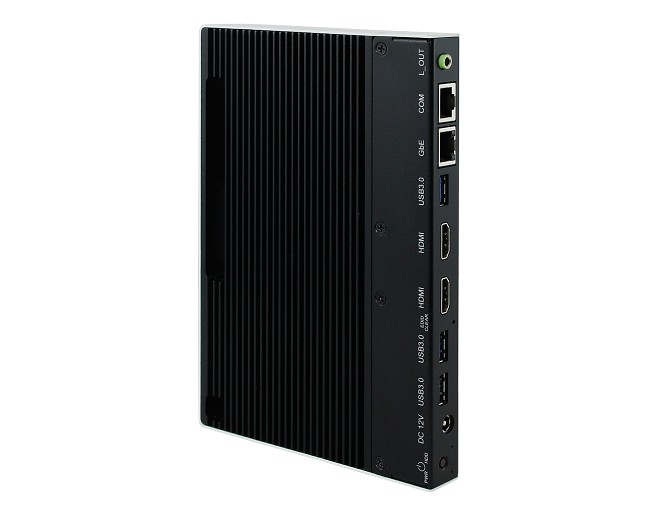

SE-102-N
Intel® Atom® x7 / x5, Pentium® & Celeron® SoC Fanless Signage Player with Two HDMI
- iSMART - for EuP/ErP power saving, auto-scheduling and power resume
- Intel® Atom® Processor x7-E3950 @ 2.0GHz
- Intel® Pentium® N4200 @ 2.5GHz or Celeron® N3350 @ 2.4GHz
- Intel® HD Graphics 505
- 2x 2GB DDR3L, Non-ECC, dual Channel, Max. 8GB (Non-ECC, Unbuffered) DDR3L-1600 for N3350 only
- 2x HDMI 1.4b, 1x Mini PCI-E(full-size) for Wi-Fi, Bluetooth or 4G LTE options
- Fanless, super slim and compact design
- Wide-range operating temperature from -40°C to 70°C
Digital Signage Player

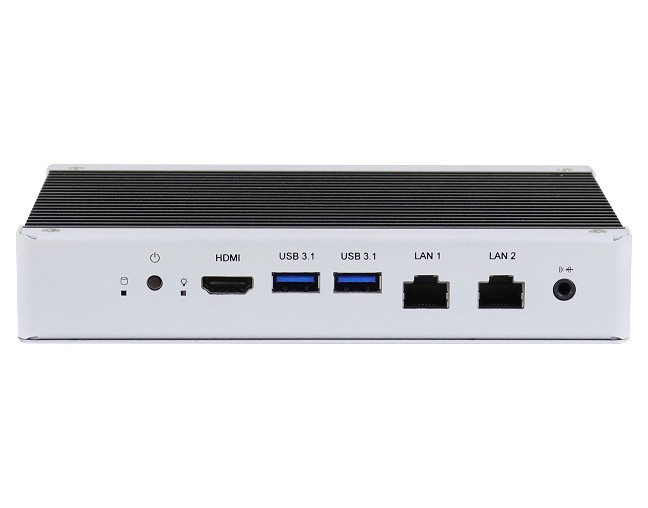

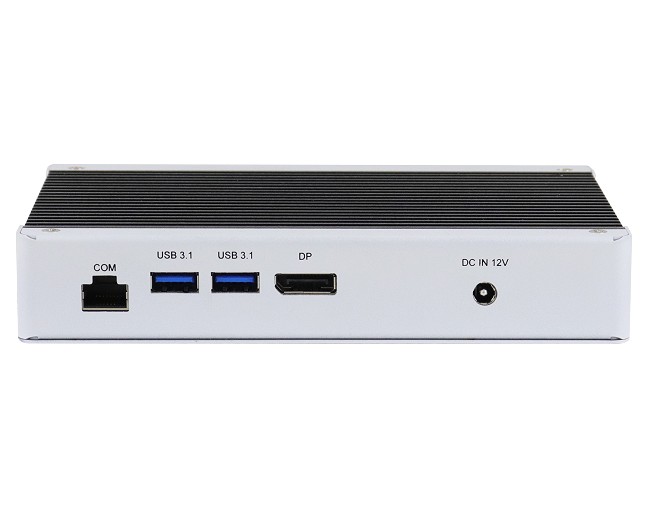

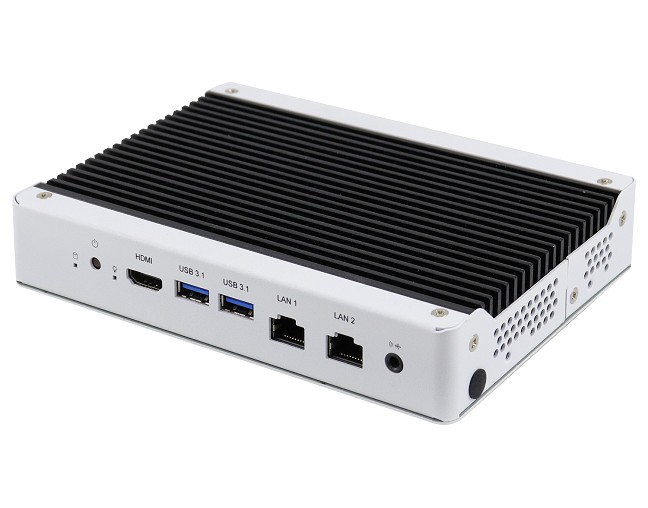

SI-642-N
8th Gen Intel® Core™ U-Series Processor Fanless 4K Signage Player with Intel® HD graphics 620 and one HDMI & DP
- iSMART intelligent energy-saving & Observer remote monitoring technologies
- 8th Gen Intel® Core™ U-series processor
- 1x HDMI 2.0 + 1x Active DisplayPort 1.2 with independent audio output
- 2x DDR4 2400 SO-DIMM, dual channel, Max. 32GB
- 1x M.2 B-Key (3042) for 4G LTE
- 1x M.2 M-key (2280) for storage
- 1x M.2 E-key (2230) for WiFi or capture card option
- TPM 2.0, vPro and watchdog timer
- Slim & compact fanless design
Digital Signage Player

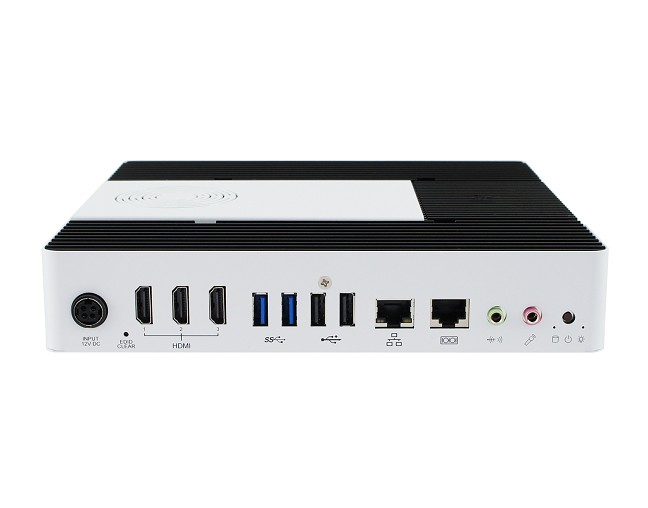

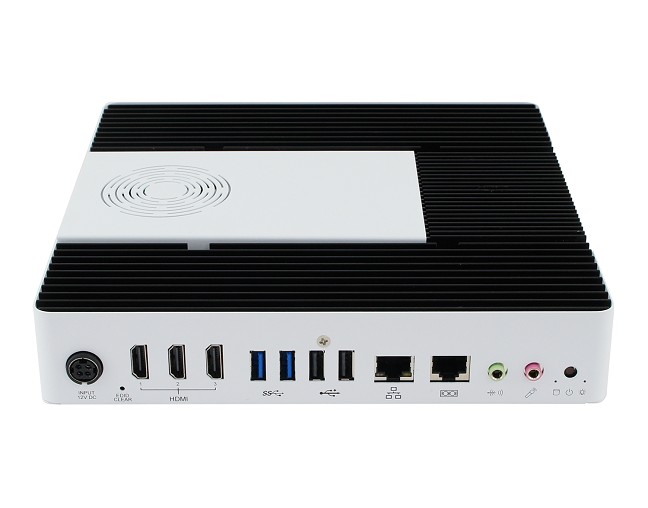

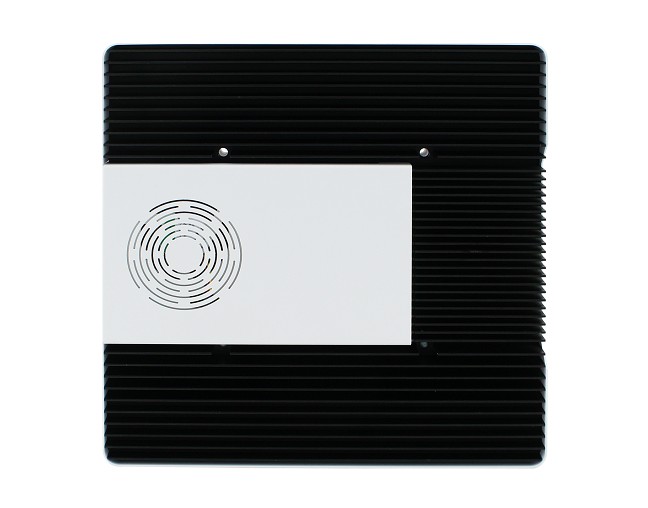

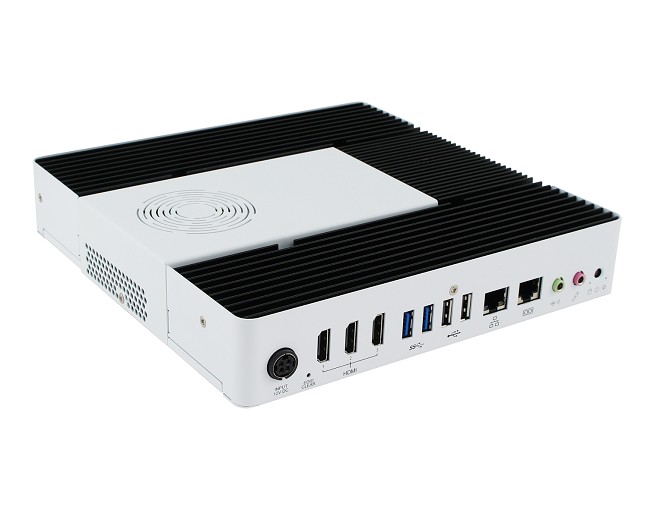

SI-613
7th/6th Gen Intel® Core™ Processor-based 4K Signage Player with Intel® HD Graphics 530 Integrated and Three HDMI
- iSMART - for auto-scheduling and power resume
- iAMT (11.0), TPM 1.2, vPro and Watchdog timer
- 7th/6th Gen Intel® Core™ processors
- Integrated Intel® HD Graphics 530
- 3x HDMI 2.0 with independent audio output support
- Built-in hardware EDID emulation function
- 2x DDR4-2133 SO-DIMM, dual-channel, Max. 32GB
- 1x M.2 B key(3042) for storage or 4G LTE options
- 1x Mini PCI-E(full-size) for Wi-Fi, Bluetooth or 4G LTE
- Slim and segregated ventilation design
Digital Signage Player

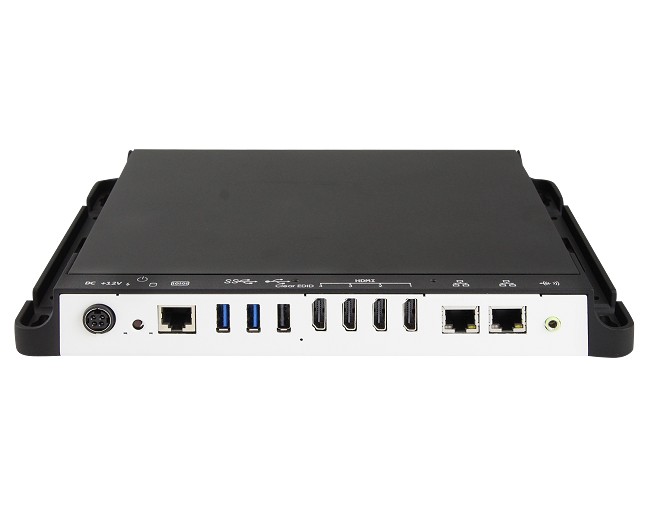

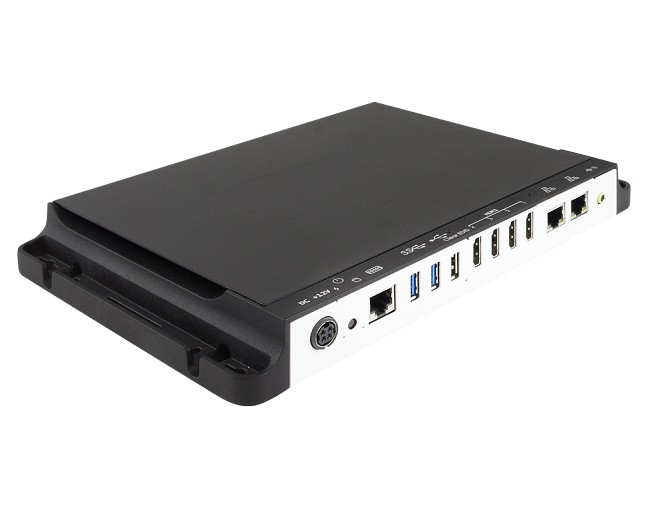

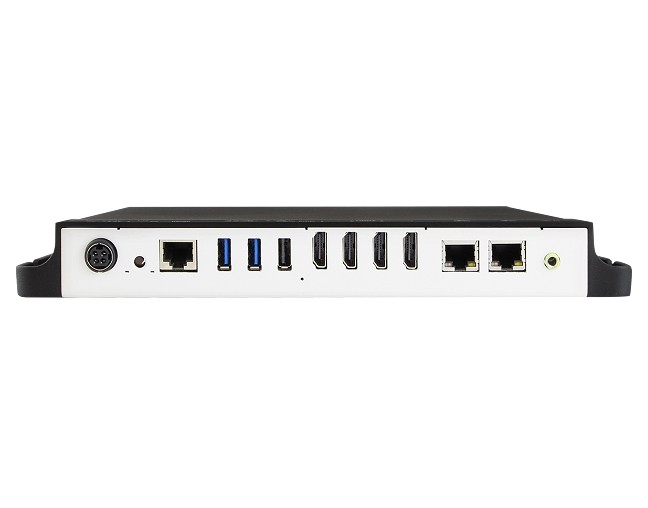

SI-324
AMD Ryzen™ Embedded V-Series Digital Signage Player with AMD Vega GPU and Four HDMI
- iCONTROL intelligent energy-saving & Observer remote monitoring technologies
- AMD Ryzen™ Embedded V1000 series
- Vega GPU with up to 11 Compute Units
- 4x HDMI 2.0 with independent audio output support
- Built-in hardware EDID emulation function with the software setting mode
- 2x DDR4-2400 SO-DIMM, dual channel, Max. 32GB
- 1x Mini PCI-E(full-size) for Wi-Fi, Bluetooth, 4G LTE or capture card options
- 1x M.2 E-Key(2230) for Wi-Fi, Bluetooth, 4G LTE options
- 1x M.2 M-Key(2280) for storage
- Segregated flow ventilation design
Digital Signage Player

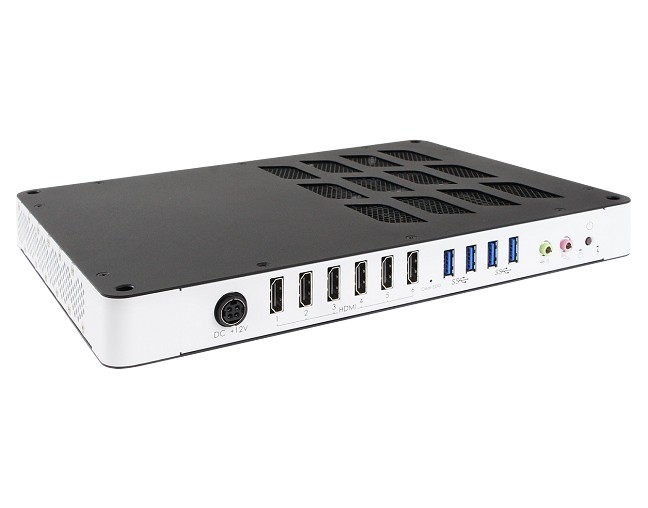

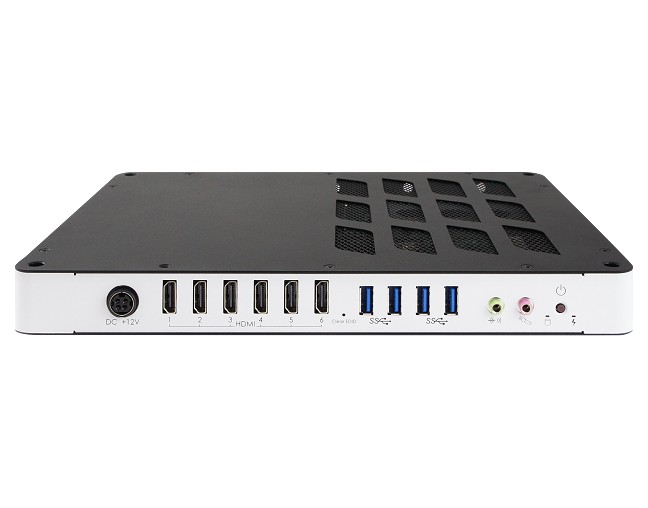

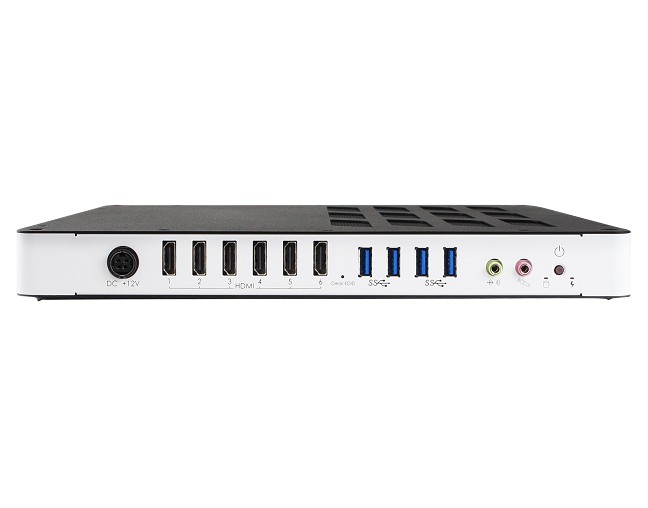

SI-626
7th/6th Gen Intel® Core™ Mobile Processor-based Signage Player with AMD Radeon™ E8860 Graphics and Six HDMI
- iCONTROL intelligent energy-saving & Observer remote monitoring technologies
- 6x HDMI1.4b with independent audio output
- Built-in hardware EDID emulation function with software setting mode
- 7th/6th Gen Intel® Core™ mobile processor
- 2x DDR4-2133 SO-DIMM, dual channel, Max. 32GB
- Flexible VW display configuration setting
- 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth, 4G LTE or capture card options
- 1x M.2 E-Key (2230) for Wi-Fi, Bluetooth, 4G LTE options
- 1x M.2 M key (2280) for storage
- 2x RS232 serial ports
- Slim and segregated ventilation design
Digital Signage Player

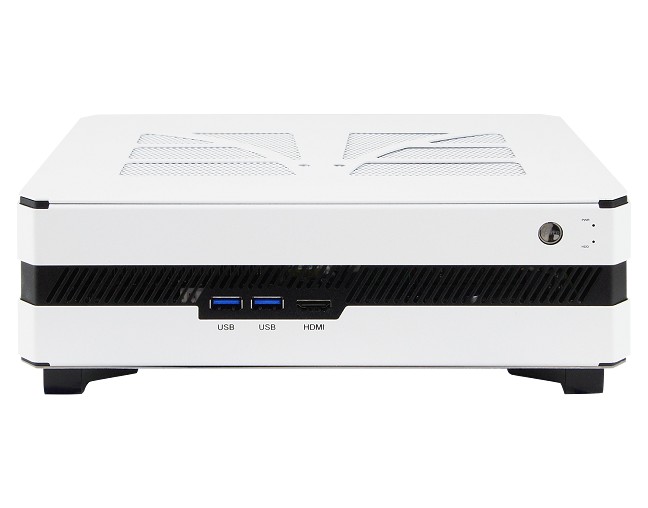

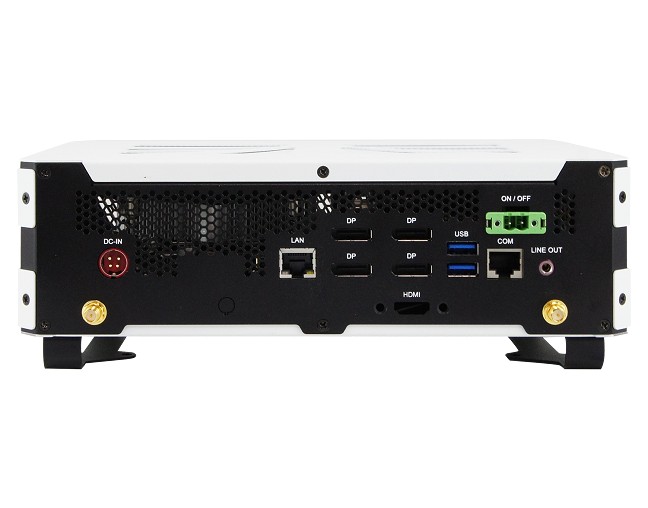

SI-614
7th Gen Intel® Core™ Desktop Processor-based Signage Player with Nvidia MXM or AMD Radeon™ Graphics and Four Display port
- iCONTROL intelligent energy-saving & Observer remote monitoring technologies
- 7th Gen Intel® Core™, i7/i5/i3/ Pentium® / Celeron® Processors
- Nvidia MXM graphics card (Type-B, up to 150W)
- 2x DDR4 2133 SO-DIMM, dual channel, Max. 32GB
- 1x HDMI 1.4 for console, 4x DisplayPort
- 1x Mini PCI-E (full-size) for Wi-Fi, Bluetooth, 4G LTE or capture card options
- 1x M.2 B key (3042) for storage or 4G LTE options
- 2x 2.5" SATA III SSD drive bay
- Compact and rugged design
Digital Signage Player

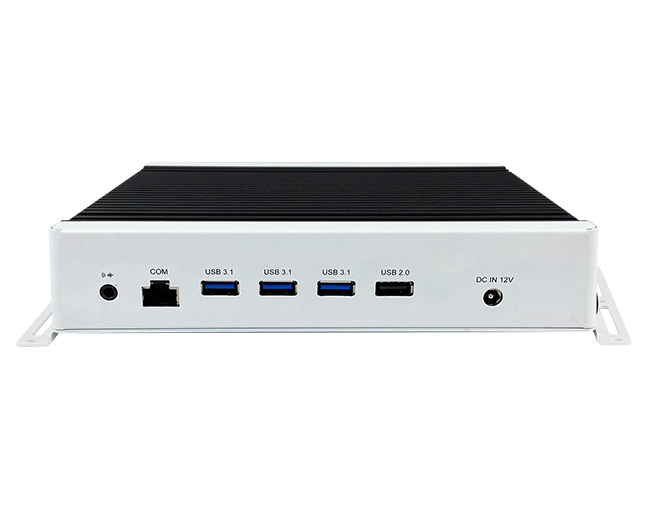

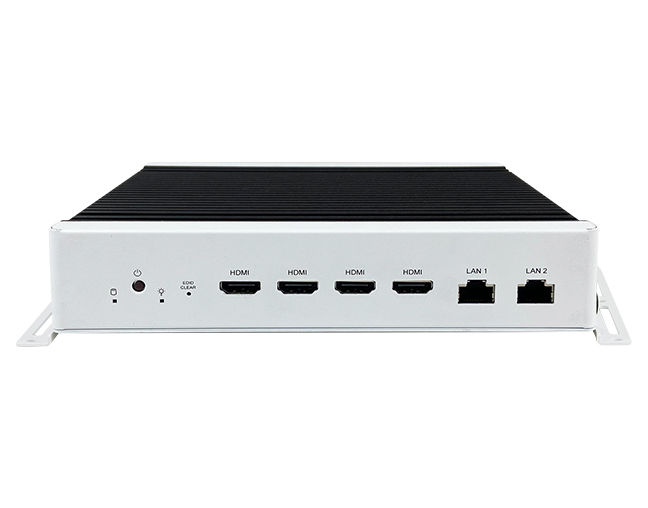

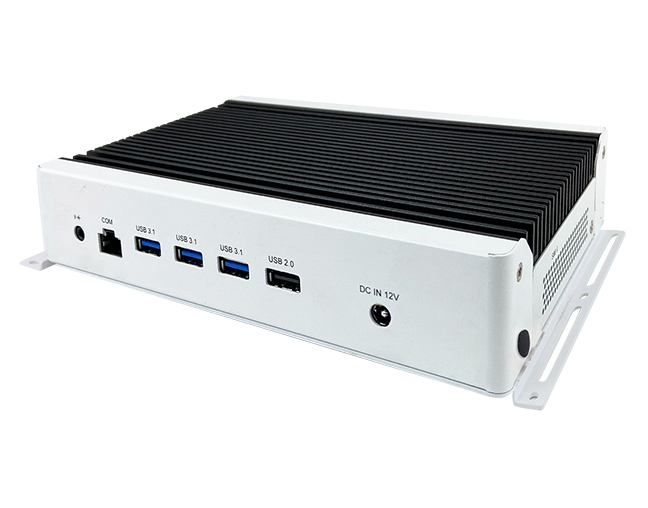

SI-654-N
11th Gen Intel® Core™ U-Series Processor Fanless Signage Player with Intel® Gen12 Integrated Graphics and Four HDMI 2.0
- iSMART intelligent energy-saving technology with power on/off scheduling and power resume functions
- 11th Gen Intel® Core™ U-series processor
- Built-in hardware EDID emulation function
- HDMI-CEC and display monitoring functions
- 2x DDR4-3200 SO-DIMM, dual channel, Max. 64GB
- 1x M.2 B-Key (3042) for 4G LTE
- 1x M.2 E-key (2230) for WiFi, Bluetooth or capture card options
- TPM 2.0, vPro and watchdog timer
- Industrial-grade robust, fanless and compact design
Digital Signage Player

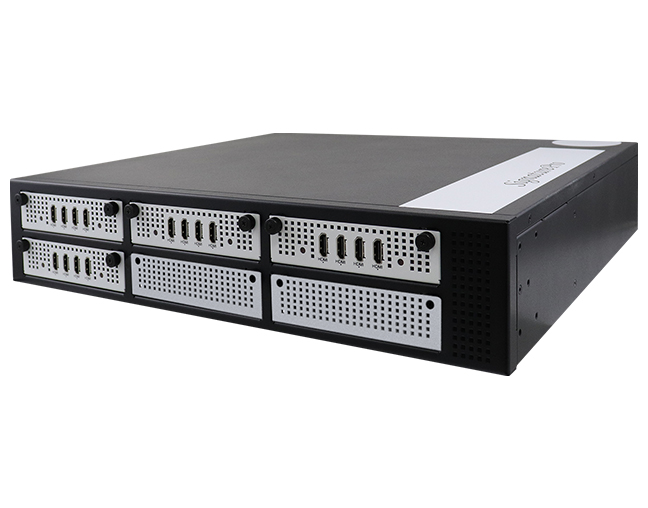

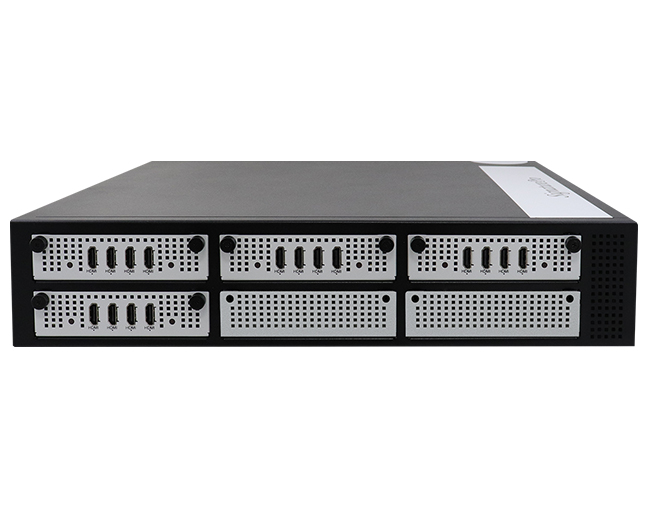

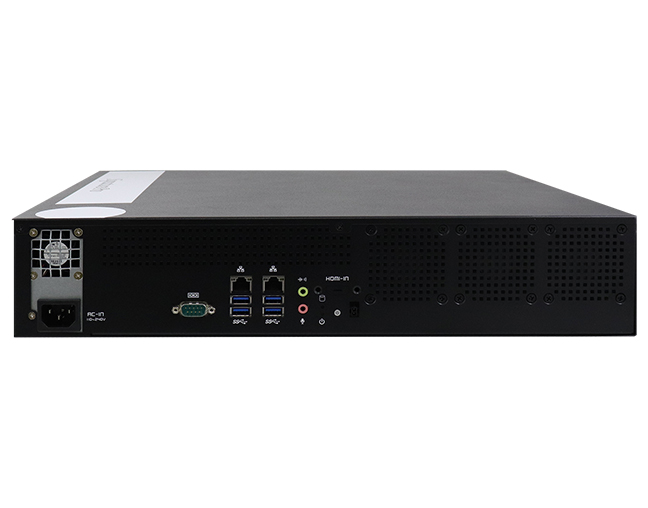

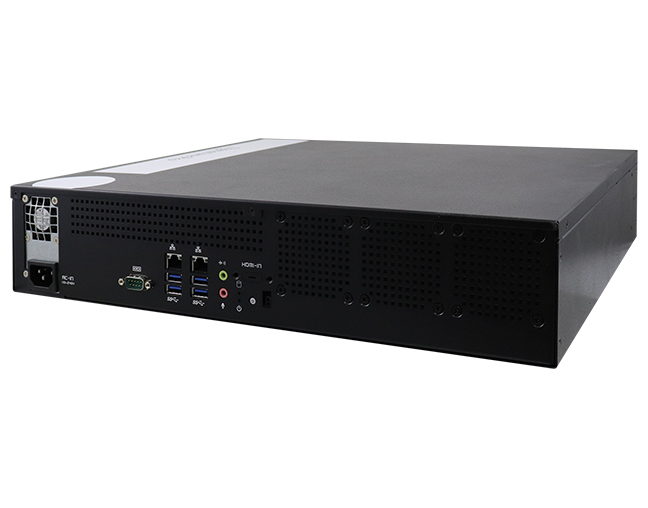

SP-63E
8th Gen Intel® Core™ Desktop Processor Video Wall Player with Intel® Arria® 10 FPGA and up to 16 HDMI
- Perfect for displaying 8K/12K video wall or menu board contents
- Supports 8th Generation Intel® Core™ desktop processors
- Built-in Intel® Arria® 10 FPGA modules
- Intel® HD Graphics P630 : 9 x HDMI (Max.)
- With MXM GTX 1080 : 16 x HDMI (Max.)
- Rugged design with Intel® vPro™ and MARS technologies
- iSMART intelligent energy-saving & Observer remote monitoring technologies
- Last frame capture and display monitoring functions
